Autoclave Kettle

  • Wood Impregnation Autoclave
  • Wood Impregnation Autoclave
  • Wood Impregnation Autoclave
  • Wood Impregnation Autoclave
  • Wood Impregnation Autoclave
  • Wood Impregnation Autoclave
Wood Impregnation Autoclave Wood Impregnation Autoclave Wood Impregnation Autoclave Wood Impregnation Autoclave Wood Impregnation Autoclave Wood Impregnation Autoclave

Wood Impregnation Autoclave

  • Wood treatment capacity:1-40m3
  • Working pressure : 0.8-3.6Mpa
  • Vacuum degree:-0.098Mpa
  • Working degree:0-180 degree
  • Working medium: water solubility and glue style wood protection chemical or creosote

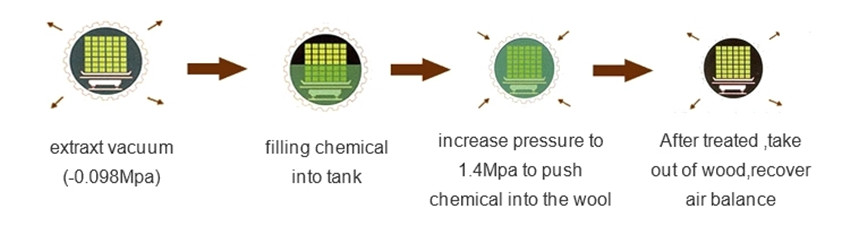

  • Working method :vacuum impregnation ,high pressure impregnation ,high and low pressure frequency method
  • INQUIRY



Introduction


1) Wood Impregnation Autoclave ( also called Wood treatment equipment ) apply to be preservation, termite proof and to prevent fungal. Especially landscape floor, outdoor wood platform and wood plank road and other preservative wood pergola.

2) This treatment equipment have special craft for wood, such as: vacuum pressure method, fullcell method, high  low frequency pressure as so on. Especially vacuum pressure method. The preservative level can get C4.

3) You can use CCA and ACQ two kinds of preservative match our wood preservation autoclave.

4) PLC is a new intelligent control  wood preservative system, which make the wood preservation equipment to be easy, and to be safety, to be reliable. Meanwhile, Even if the wood don't be push out, this can accurately calculate if the preservative is permeated in the wood.


Technical Parameter

SPECIFICATION

VOLUME(Cube)

SINGLE TIME

TREAT VOLUME(Cube)

PRESSURE(kg/Cube)

VACUUM DEGREE

DN1000*8000MM

6.8

3.6

16

0.098MPA

DN1200*8000MM

9.6

5.6

16

0.098MPA

DN1400*8000MM

13.1

7.2

16

0.098MPA

DN1500*8000MM

15.6

8.6

16

0.098MPA

DN1600*8000MM

17

10.2

16

0.098MPA

DN1800*8000MM

21.6

15

16

0.098MPA

DN2000*8000MM

27

17

16

0.098MPA

DN2400*8000MM

40

25

16

0.098MPA


Specification

1. Double safety protection device: we design double safety device, manual safety, and automatic safety interlock, Only there is pressure inside the tank, the worker cann’t open the door .

2. Automatic set time function and light alarm, save worker’s time, you can set any time in the control box, once it finish, it will stop work and alarm.

3. Quickly discharge chemical: 10 minutes to discharge chemical, improve treated time.

4. Perfect tightness: we use air filled style to seam the door and the system match automatic inlet and outlet air pneumatic valve, it can balance tank pressure well.

5. High efficiency, save energy, once the equipment finish vacuum and pressure stage, the pump will stop, but whole tank still keep vacuum state.


Usage

After treated wood can be used for wooden bridge, wooden fence, poles wooden house, wooden furniture, sleepers. There are there kinds of hemica,water solution,oil chemical,resin chemical.. More details welcome to consult with us.
